Micro-XRF is the method of choice for highly sensitive and non-destructive elemental analysis of diverse samples, including inhomogeneous and irregularly shaped specimens.

The M4 TORNADO is a versatile instrument for fast and accurate high-resolution analysis of both small and large specimens. Samples require little or even no preparation at all for examination.

With M4 Tornado Plus can measure from Carbon upwards. With AMICS software it can automated identify mineralogy of geological samples.

Fast scan and get a lot of information with dual detectors. It also can do an empirical calibration using customer’s CRM. In Archaeology, it can identify fossils and other historical items such as paintings and statues.

CRONO is a mobile and reconfigurable fast micro-XRF scanner. Based on the EDXRF technique, it has been designed for in-situ, non-destructive and highspeed examination of large objects.

The XRF components are fully integrated into a compact measurement head and allow the detection of elements in the range from Na to U with good efficiency even in the region below 2 keV and above 25 keV (e.g. Sn, Sb, and Ba K-edge emissions).
The measurement head is mounted on a motorized stage that allows for up to 60 cm x 45 cm scanning area. The motorized frame and the support trolley can be easily dismantled for transportation. CRONO can be turned into a portable spot XRF device by installing the measurement head on a light tripod.

The system works in a complete non-contact mode with an optimum focus distance of 5 – 7 mm from the sample. The analysis area is always under control thanks to several monitoring systems.

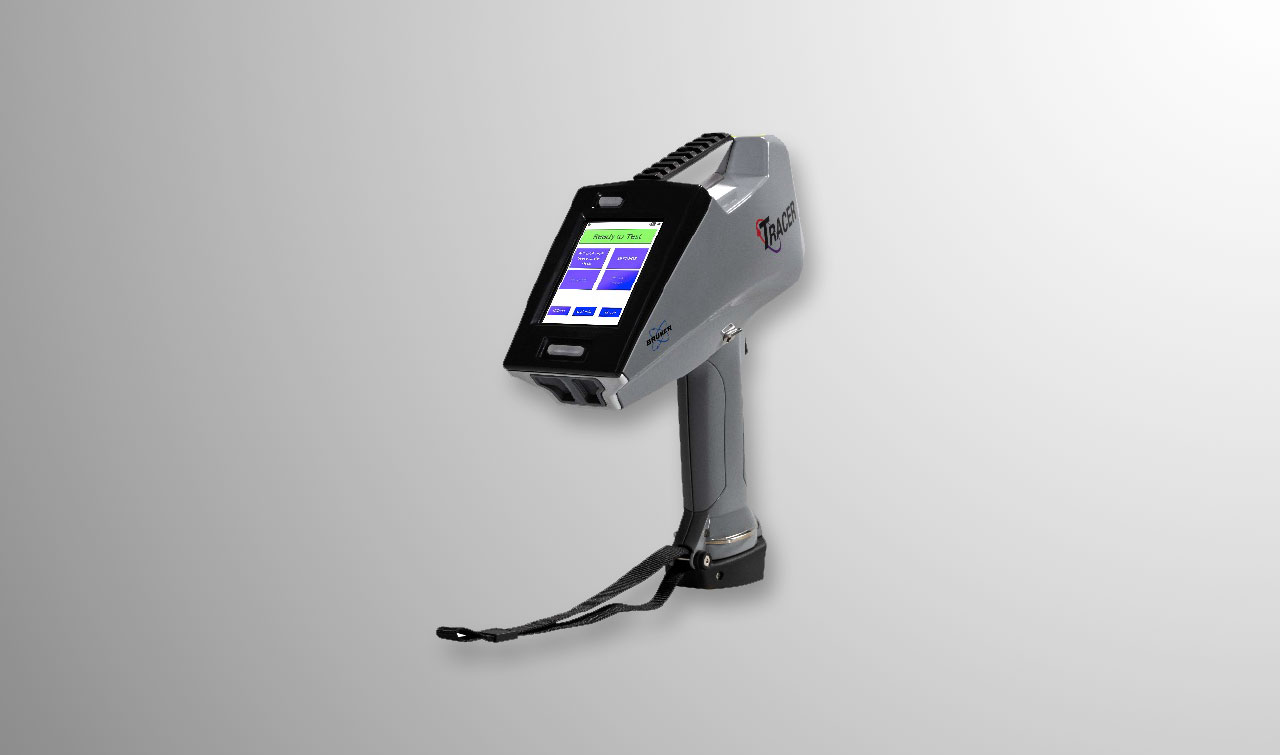

Handheld XRF untuk peneliti mutakhir; Spektrometer TRACER 5 pXRF; ideal untuk Pengembangan Metode, Bahan Penelitian dan Kompleks.

TRACER 5 adalah nilai tinggi yang menyinkronkan kinerja, fungsi, ketepatan, dan akurasi pemain in-situ pXRF untuk analisis unsur yang menyerupai laboratorium di lapangan.

TRACER 5g memiliki 1 µm Graphene Window, Mendeteksi F to U (dengan atmosfer He), Menganalisis Na to U. Ideal untuk aplikasi geosains.

Hubungi tim penjualan kami untuk mendapatkan informasi lebih lanjut tentang produk.

Definition of Precision

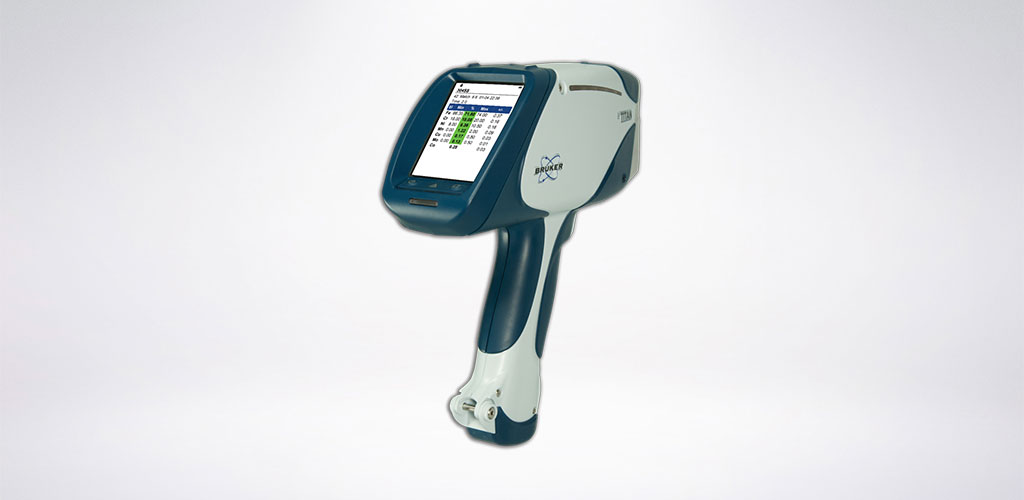

The S1 TITAN Series Handheld XRF Analyzers

The S1 TITAN series is designed to quickly and accurately report the elemental analysis of your sample. Whether you need to analyze large machined parts, children’s toys, or small jewelry, the S1 TITAN will deliver fast and accurate results. The ergonomic pistol grip and trigger are designed for all-day use. The color touchscreen LCD is easily seen in all lighting conditions. Weighing in at just 1.5kg (3.3 lbs), the S1 TITAN is among the lightest tube-based XRF analyzers on the market.

Designed as a “point and shoot” analyzer, the S1 TITAN requires minimal setup and operator training. Equipped with both user-level and supervisor-level access, a manager can choose to grant basic operator control or full functionality. This two tier approach and intuitive interface make the S1 TITAN perfect for both beginning users, as well as power users.

Since XRF is a non-destructive technique, it is ideal for analyzing and sorting incoming material, finished goods and in-process production parts. Applications for the S1 TITAN are not limited to clean manufactured parts; scrap metal sorting, geochemical assays and soil testing are also well within the capabilities of the S1 TITAN. Available calibrations are as diverse as the list of applications, but if you don’t find a calibration to match your application, we can customize a calibration to perfectly fit your requirements.

Download

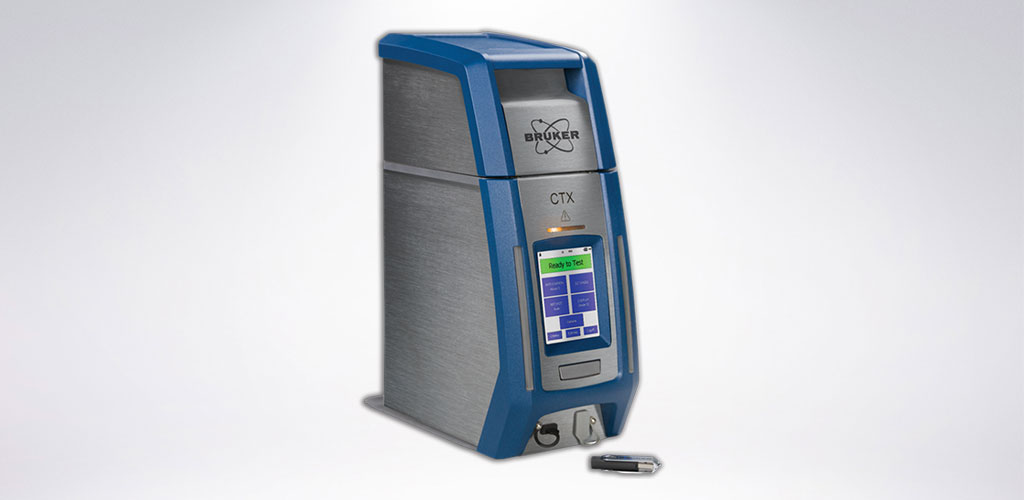

Portable Benchtop/CounterTop XRF Analyzer

Safety Interlocked

Self Contained

Elemental Analysis with Portable X-ray Fluorescence Spectrometer

The portable Counter Top XRF (CTX) is small, light-weight, safety-interlocked, and battery operated. At 7 kilograms in weight, the self-contained CTX is truly portable, and has a small footprint of only 14 cm in width. Up to 48 elements analyzed per calibration. Wide elemental range, from Mg to U.

Other innovative features include:

• Latest graphene window SDD detector for excellent light element sensitivity
• Patented DetectorShield™ for long term performance and minimal service
• New powerful X-ray source with precise SharpBeam™ collimator
• High speed pulse processing electronics
• Consistent sample presentation with index markings for better precision

CTX Benefits at a Glance:

• Wide application and elemental Range (Mg - U)
• Detects concentrations from part per million (ppm) to 100%
• Robust, splash and dust proof stainless steel construction
• Dual safety interlocked piece of mind
• Very small footprint: 14 x 25 cm

Download

Non-contact micro-XRF Scanning Spectrometer

The Only Portable XRF Scanner on the Market

High Quality Spectrum for Qualitative Analysis

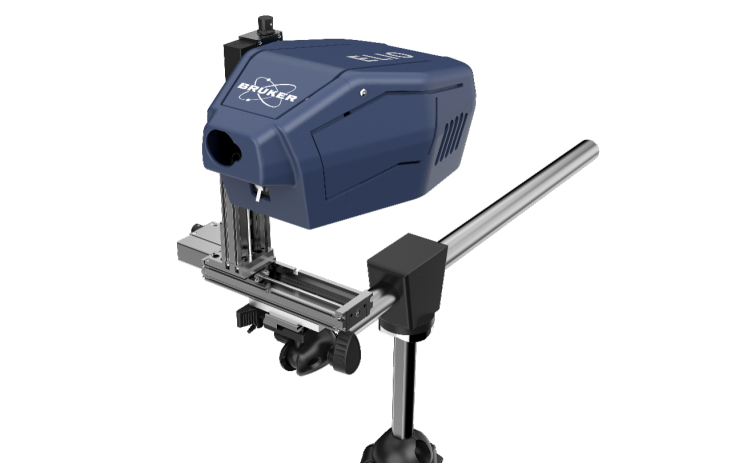

Portable Micro-XRF Spectrometer with Mapping Option

The Bruker ELIO is easy to operate and reveals the crucial secrets of the object you aim at. High value objects are safe with the Bruker ELIO. The non-contact measurement is non-invasive and completely non-destructive. No sample preparation is required.

The light weight of the measurement head and the tripod make this system the only truly portable x-ray fluorescence (pXRF) spectrometer with mapping capabilities on the market and the perfect travel companion.

The alignment lasers identify the measurement point easily and ensure the correct and safe distance between sample and measurement head. High resolution optical images are recorded with an internal camera for each data point in addition to the XRF data.

The Bruker ELIO offers superior spectral quality with extremely low background which allows reliable qualitative trace element detection. The instrument can also be equipped with a He purging system to further extend the range of detectable elements as far as Na (Z = 11) to U (Z = 92). The Bruker ELIO micro-XRF spectrometer detects trace elements reliably thanks to the superior design of the electronics. The spectrometer can be equipped with several X-ray filters to optimize the excitation conditions for specific applications.

A spectrum or a map can be recorded with the ELIO software. The automatic peak ID provides a quick visual indication of elements in a sample. The interface shows the spectrum and the element concentration while the acquisition is running. Data interpretation is easy with the overlay of the optical images and the XRF data.

The powerful data processing software ESPRIT Reveal offers many options for the offline analysis.

Download

The advantages of Hardness Tester NOVOTEST T-UD3:

• Hardness measurement of any mass products with a thickness of 1 mm – inaccessible to the dynamic (Leeb) hardness testers (small parts, thinwalled structures, pipes, tanks, steel sheets, articles of complex shape, hardness control of metal coatings, etc.)
• Small imprint after measuring (mirror surfaces of shafts necks, blades, gear teeth, etc.)
• Measuring the hardness of the surface hardened layer
• Wide range of hardness
• Various measurement modes
• Calibration of any scale in any range
• Convenience and ease of measurement
• Large full color graphic display with bright back-lighting
• Automatic recognition of probe
• Indication of the type of connected probe
• Calibrations stored in memory of probe
• Extended temperature range (frost, down to - 40°C)
• Internal memory and communication with PC
• new, intuitive menu with tips on the buttons
• Optional wireless mini printer
• Water resistant case
• Rubber bumper protected case

Download:

• Brochure
• Catalogue

Nieka® ELECTRIC

Paramount reliability now available for electric fusion

1. fully automated glass bead or solution preparation
2. unique safe to touch glass surface
3. no fragile ceramic parts
4. up to 1250C fusion temperature
5. ultra-precise temperature control for complex pre-oxidation
6. exhaust fumes concentrated in a small extraction area
7. plug and use in seconds
8. 208-240 V / 20 A / 2500W max.

Download

The solution for high-throughput fusion laboratories.

PERFECT FUSION EQUALS
PREMIUM RESULTS

A superior control of the fusion process is the starting point of first-class analytical results.

AT NIEKA®, we used our strong experience from the fusion industry and forged an instrument that is the perfect t for the most demanding high-throughput fusion laboratories. Downtime is your enemy and using the best tool is your only way to remain on top and deliver results on time.

For the last years, we spent thousands of hours creating just what you need: a high-throughput instrument that creates perfectly homogenous samples for analysis with no surprise. Thanks to the Nieka® exclusive monitoring features, you avoid the unpredictable, even if you are o-site.

For the first time in a gas fluxer, the G-Series offers a reliable temperature monitoring of the fusion process and fully independent fusion chambers (patented). Nothing has been left aside, from perfect monitoring to perfect fusion: this will lead you to premium analytical results.
